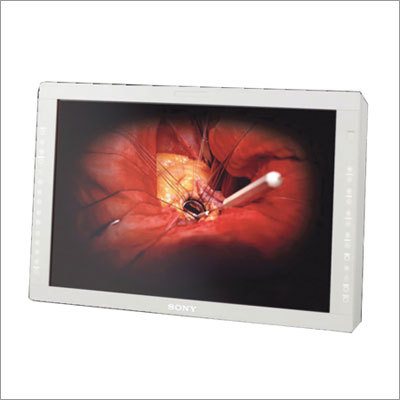

Laparoscopy Monitor

Laparoscopy Monitor
Laparoscopy Monitor
Product Code : LMD-2451MD
Brand Name : Sony
Product Description

Laparoscopy Monitor

Backed with rich experience in this domain, we are counted amongst the top most leading distributors and exporters of Laparoscopy Monitor. These monitors are used for monitoring purposes in operating theatres, monitoring rooms & diagnostic centers. Our offered range is widely accredited by the clients such as durability, compact design and easy installation. Available at industry leading prices in the market; Laparoscopy Monitor is manufactured as per the industry standards and norms.


Further Details:

ChromaTRU Colour Processing

For enhanced colour reproduction accuracy, every LCD panel used in the LMD-2451MD is precisely colourcalibrated to ensure consistent characteristics. The colourimetry of an LCD display can, by nature, exhibit inaccurate colour characteristics and gamma curves, which can make precise colour matching between multiple monitors a challenge. The LMD- 2451MD solves this problem by precisely calibrating each LCD panels light output so that the RGB colour co-ordinates are consistent for every monitor. A second calibration is also applied to ensure that white balance is maintained at a consistent colour temperature throughout all gray-scale levels. This technology is invaluable for applications such as simultaneous monitoring in operating theatres and monitoring rooms.

Outstanding brightness

and contrast The LMD-2451MD provides high brightness and high-contrast images by utilising super-wide aperture WUXGA LCD panels (1900 x 1200 pixels).

Built-in option slots for ultimate flexibility

The LMD-2451MD features two unique built-in option slots that enable users to easily expand, select, and change input/output signals, depending on the modality application. These built in option slots are designed to support a variety of option boards such as the BKM-250TG, which allow the monitor to accept a 3G-SDI input signal and transfer a 1080/60p signal via a single SDI cable. Use of the optional BKM-256DD board increases the monitors DVI input/output capability to accept up to two DVI-D inputs and one DVI loop-through output.

Technical Specifications


Composite input

BNC (x1), 1.0 Vp-p +3dB, sync negative

Y/C input

4pin Mini DIN (x1)
Y: 1.0 Vp-p +3dB, sync negative
C: 0.286 Vp-p +3dB (NTSC), 0.3 Vp-p +3dB (PAL)

Component/RGB input

BNC (x3)
Component: 0.7 Vp-p +3dB (75% chrominance standard colour bar signal)RGB: 0.7 Vp-p +3dB
(Sync on green, 0.3 Vp-p, sync negative)

Ext. Sync input

BNC (x1), 0.3 to 4.0 Vp-p +bipolarity ternary or

negative polarity binary

Computer input

DVI-D (x1): TMDS single link


DC 5 V/24 V (output impedance 0.05© or less)

Y/C output

4-pin mini-DIN (x1), Loop-through, 75© automatic termination


Power consumption

Maximum: Approx. 115 W (with 2 x BKM-229X)

Operating temperature

0 to 35oC (32 to 95oF)

Storage and transport humidity

0 to 90% (no condensation)

Operating, storage and transport pressure

700 to 1060 hPa


Approx. 8.5 Kg (18lb 12oz) (with BKM-243HS pre-installed)
